| Categories | M12 Connectors |
|---|---|
| Brand Name: | KRONZ |
| Model Number: | H1208MA-9/L |
| Place of Origin: | Guangdong, China |
| Certification: | CE |
| MOQ: | 5 |
| Price: | Negotiable |
| Packaging Details: | Polybag packing |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, |
| Supply Ability: | 100000 pieces per month |
| Insulation resistance: | ≥100MΩ |
| Ambient temperature: | -25~+85℃ |
| Voltage: | 30V |
| Contact resistance: | ≤5mΩ |
| Contact carrier material: | PA, Black |
| Standard: | IEC 61076-2-101 |
| Cable outlet: | Angle |
| Mating cycles: | >100 |
| Company Info. |
| Kronz (guangzhou) Electronics Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

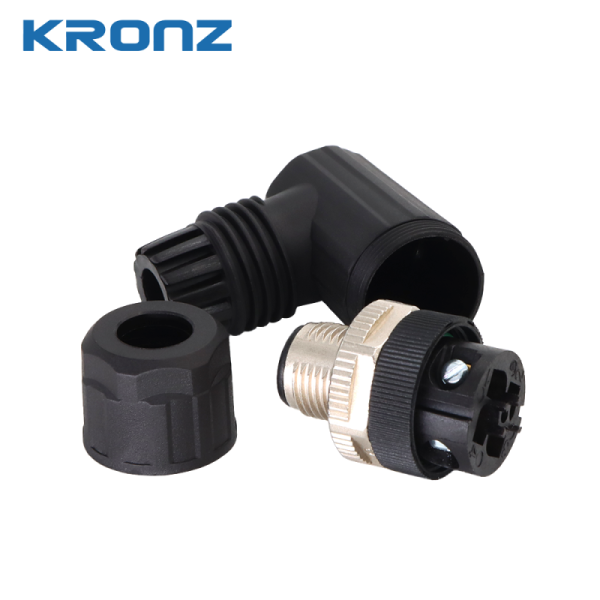

The M12 Connector is a versatile and reliable circular connector designed for industrial applications requiring secure connections in challenging environments. With coding type A, this waterproof connector ensures accurate mating and consistent performance.
| Attribute | Value |
|---|---|
| Insulation resistance | ≥100MΩ |
| Ambient temperature | -25~+85℃ |
| Voltage | 30V |
| Contact resistance | ≤5mΩ |
| Contact carrier material | PA, Black |
| Standard | IEC 61076-2-101 |
| Cable outlet | Angle |
| Mating cycles | >100 |
| Pollution degree | 3 |
| Contact resistance | ≤5mΩ |
| Contact surface material | Brass, Gold-plated |
| Coding | A |
| Rated current | 2A |
| Contact nut material | Brass, Nickel-plated |
The M12 connector is ideal for industrial automation, machinery, and sensor applications where reliable connections in harsh environments are required. Its angled cable design provides installation flexibility in space-constrained scenarios.
Comprehensive technical support is available for all M12 connector products. Our team provides expert assistance for installation, troubleshooting, and application-specific guidance.
Each M12 connector is individually packaged in protective plastic bags and shipped in sturdy cardboard boxes to ensure safe delivery. Standard packaging includes:
|
