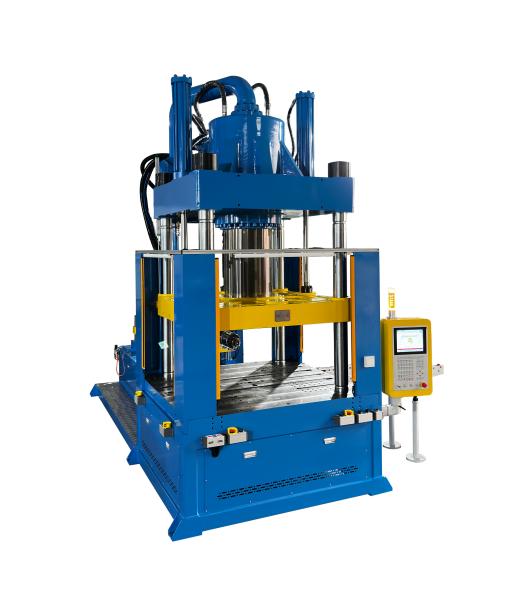

220T Vertical Clamping Horizontal Injection Molding Machine

220T Vertical Clamping Horizontal Injection Molding Machine

Product Description

220T vertical clamping horizontal Injection Molding Machine

Clamping Force: 220T


Vertical clamping, horizontal injection

Easy to set torque , speed, deceleration distance and stand number segmentation

Energy-saving system

Main Features

1) vertical clamping, horizontal injection,

2) clamping force, injection weight and shot speed can be changed according to actual demand.

		UNIT	JTKR-2200
INJECTION SYSTEM	screw diameter	mm	65
	injection pressure	kg/cm2	1416
	theoretical shot volume	cm3	1061
	injection rate	cm3/sec	71
	screw stroke	mm	180
	screw speed	rpm	0-160
	nozzle contact force	tons	6
	temprature control number	-	6
CLAMPING SYSTEM	clamping force	tons	220
	opening force	tons	18
	distance between tie bar	mm	1500*1300
	min mould height	mm	1200*1000
	opening stroke	mm	550
	max open daylight	mm	550
	ejector force	tons	1100
	ejector stroke	mm	7
OIL PRESSURE SYSTEM	max hydraulic pressure	kg/cm2	150
	pump output	L/min	140
	oil reservoir capacity	L	800
	cooling water consumption	/hr	1500-2000
	SERVO motor power	KW	40
	heating power	kw	25
	total power	kw	65
OTHER	machine weight	tons	17
	machine dimension	m	4.4*1.75*3.5

Certifications

Detailed Images

Our Service

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.

Packing & Delivery

Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

The predecessor of Dongguan Jintong Plastic Machinery CO., LTD is Shenzhen Tong Plastic Machinery CO., LTD Today.
Since the foundation of 2000, Jintong have been focusing on vertical injection molding machine, low pressure injection molding machine and so on. The design, production and assembly of all machines confirm with regulations of European Association of Plastic and Rubber machinery Manufacturers.
Jintong machinery aim to improve customers competitive strength by increasing productivity and product quality.
Jintong company have sophisticated technology to develop and design machines with vatiety applications, as diamond wire coating, USB connector, plug, PCB board, glass encapsulation, automobile sunroof foaming, sintered alloy, ceramic materials, medical products and plastic goods with embedded metal.
Jintong machinery is one of manufacturerS with outstanding independent research for standard vertical injection molding machine, sliding vertical injection molding machine, rotary vertical injection molding machine. Jintong machinery have proprietary intellectual property rights, especially 3-color and 4-color vertical injection molding machines with clamping force from 85T to 300T are initiated in China. The biggest clamping force of Jintong machines reaches 2000T.
Based on strong and durable quality, Jintong machines export far to Southeast Asia, Europe, South America and so on.
Jintong machinery keep business philosophy to pay highly attention to technology and quality, and make trade policy for sincerity and perfect service. Jintong machinery establish a set of systemic and standard service process to start 24 hour response institution and solve customers problem at any time.
