Galvanometer Scanning Welding Head with Low-Maintenance Optical Component Design

Categories Wobble Laser Welding Head
Brand Name: HanWei
Model Number: HW-Y-8/25/80/160/300/500
Certification: CE
Place of Origin: Shenzhen, China
MOQ: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Delivery Time: 10 working days
Packaging Details: Export Plywood Packing
Model: HW-Y-8/25/80/160/300/500
Input Electric: AC220 50/60 Hz / AC380 50/60 Hz
Weight: 100/170/180/220/240 Kg
Wavelength: 1064nm
Cooling mode: Air / Water
Power Stability: ± 2.5 / ± 3.0
Pulse width: 15 ms
Frequency: 30/100 Hz
Working Mode: Pulse
Dimension: 955*415*870 mm/ 1175mm×515mm×980mm/ 1360mm×630mm×1120mm
Pulse Energy: 5J /25J /50J / 70/100J
Equipmen: 1/1.2/3/6/12/16 Kw
Output Power: 8/25/80/160/300/500W
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Galvanometer Scanning Welding Head with Low-Maintenance Optical Component Design

Galvanometer Scanning Welding Head with Low-Maintenance Optical Component Design
The platform galvanometer scanning welding head is structurally designed with full consideration of equipment integration requirements, featuring compact overall dimensions and significantly reduced weight. Its lightweight body not only facilitates installation on various automated platforms but also reduces the inertial load of moving components, which helps improve system response speed and welding stability, making it particularly suitable for high-speed and high-precision welding applications.
Key Features
  • Lightweight Structural Design.

  • Diverse Oscillation and Beam Combination Options.

  • Multi-industry Application Capability.

  • Low-maintenance Optical Component Design.

  • Mature and Stable Control System.

Technical Specifications
ModelHW-PT-36HW-PT-50
Usable Power3000 W maximum6000 W maximum
Collimating length100100
Focus length200 / 250 / 300 / 350200 / 250 / 300 / 350
Interface typeQBHQBH
Accessible wave range1064 nm1064nm
Head TypeCustomizedCustomized
Net weight2.3 kg3.5 kg
Beam size adjustable0.5 5mm0.5 5mm
Laser beam mode―,○,◎,⊙,△,8―,○,◎,⊙,△,8
Usable laser sourceMost of laser sourceMost of laser source
Applications
The focusing lens and collimating lens are installed in a drawer-type structure, allowing lens replacement without complex disassembly and assembly operations. This design significantly lowers the difficulty of daily maintenance and after-sales service costs, while reducing equipment downtime caused by maintenance and improving the overall operational efficiency of the production line.
The dedicated laser control system paired with the welding head has undergone continuous upgrades and optimizations over more than a decade, demonstrating outstanding performance in terms of stability and anti-interference capability. The system enables precise oscillation control and laser output management, ensuring consistent welding quality even during long-term continuous operation, thus providing reliable support for industrial-grade applications.
About Shenzhen Hanwei Laser
Hanwei Laser upholds the philosophy of "taking R&D as the core driver, technology as the solid foundation, and service as the backbone support", providing customized professional solutions for B2B clients spanning laser equipment producers, automation enterprises and other related sectors. Its service commitments focus on reliable product quality, continuous technological progress, sustained innovative capabilities, and all-round after-sales support. Boasting profound expertise in laser technology, laser system integration, power supply configuration, control system development, optical structure design, and welding process refinement, Hanwei Laser’s technical team utilizes solid theoretical underpinnings and extensive practical experience to deliver efficient, high-performance solutions tailored to diverse industrial scenarios.

The company’s product portfolio features a self-developed optical system architecture, coupled with a scientifically optimized optical path arrangement and high energy transmission efficiency. Core optical components are fabricated from high-grade imported quartz optical lenses and integrated with advanced overseas coating technologies, achieving industry-leading standards in terms of reflectivity, light transmittance, and heat resistance. This sophisticated design not only guarantees the stability of laser energy delivery but also effectively prolongs the system’s operational lifespan while enhancing the consistency of processing results. Hanwei Laser’s product range is widely applied across numerous industries, including new energy batteries, automotive manufacturing, auto parts, electronic circuits, optical fiber communication devices, mobile electronics, home appliances, kitchen and bathroom hardware, precision instruments, measuring tools, jewelry processing, medical devices, solar energy, eyewear production, and motor manufacturing.
Product Portfolio
  • YAG laser welders
  • YAG + Diode hybrid welders
  • Diode laser welders
  • Mold repair laser welders
  • Ring-Spot laser welding equipment
  • Blue laser welding systems
  • Blue laser + fiber hybrid welders
  • Diode + fiber hybrid welders

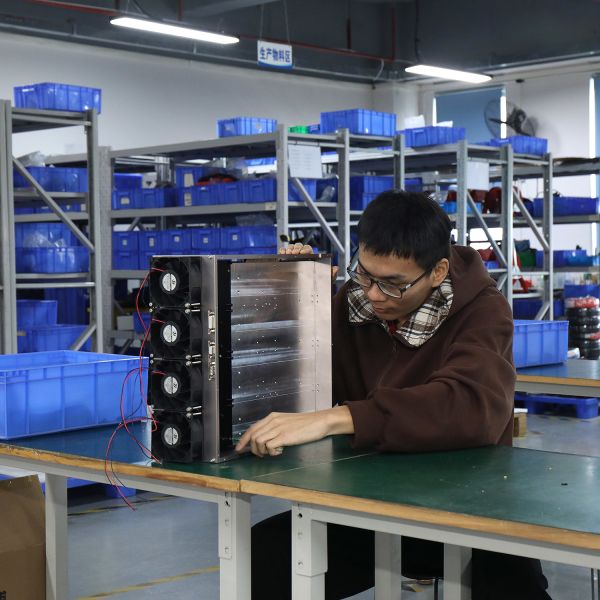

  • QCW laser weldersHanWei Laser welding equipment in operation YAG Energy Negative Feedback Laser Welder components HanWei Laser welding system components YAG Energy Negative Feedback Laser Welder detailed view
