High Efficiency Welding Manipulators MIG TIG Welding Machine

Categories Welding Manipulator
Brand Name: Ronniewell
Model Number: LH2020
Certification: CE,ISO,CSA
Place of Origin: China
MOQ: 1set
Price: pls confirm with us
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 30 sets per month
Delivery Time: 30working days
Packaging Details: naked with seaworthy package
Application: Pipe can vessel fabrication
Function: L.S /C.S welding
Usage: Manipulate welding machine
Structure: Travel & Rotate
Payload: 100kg
Reach range: 2000mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

    High Efficiency Welding Manipulators MIG TIG Welding Machine

    High Efficiency Welding Manipulators MIG TIG Welding Machine


    Brief introduction:

    Welding manipulator is used to manipulate welding machine instead of welder. It is used for vessel longitudinal & circumferential seam welding.




    Description of welding manipulator:

    • There are a number of designs for the welding manipulators, such as the stationary type, the stationary and rotating type, and the all orientation type.
    • The movement of the boom is adopted with frequency conversion control.
    • PLC programming controller is optional.
    • It is good in mechanic precise.
    • It is accurate in positioning.
    • The company is able to design and manufacture special manipulators for our customers.
    • The welding manipulator can be used together with welding rotator or welding positioner.
    • It is widely used in industries as boiler, pressure vessel, petro-chemical machinery for welding of inner and outer longitudinal seams and circumferential seams.
    • It has the advantage of in advanced structure,complete function, easy operation, which ensures improving of welding quality.
    • According to the requirement, it can be adopted welding seam tracing and monitoring, welding flux recovery and feeding device.



    Welding manipulator feature:

    • Automatic flux feeding, recovering devices, wire feeder device, working platform and chair is optional.
    • Automatic welding manipulator can be adopted with various welding power (Chinese or international famous brand) .
    • Stretching of cross boom adapts AC frequency converter stepless speed control and run with steady speed.
    • Head equipped with electric cross slides, can adjust position of welding .
    • Chain break-resistant and anti-slip device in boom to guarantee safety.
    • Braking device can ensure column work in safe environment.
    • Customized manipulator requirements are accepted.



    Main technical parameter:

    Model

    LH2020

    LH3030

    LH4040

    LH5050

    Structure:

    Travel &

    Rotation

    Travel &

    Rotation

    Travel &

    Rotation

    Travel &

    Rotation

    Boom horizontal stroke : mm

    2000

    3000mm

    4000mm

    5000mm

    Boom vertical stroke : mm

    2000

    3000mm

    4000mm

    5000mm

    Boom horizontal speed :mm/min

    150-1500

    150-1500

    150-1500

    150-1500

    Boom vertical speed : mm/min

    1000

    1000

    1000

    1000

    Boom horizontal motor power :kW

    0.55

    0.55

    0.55

    0.55

    Boom vertical motor power :kW

    2.2

    2.2

    2.2

    3

    Column rotating angle

    ±180°

    ±180°

    ±180°

    ±180°

    Column rotating speed- Optional :rpm

    0.75

    0.75

    0.75

    0.75

    Column rotating motor-Optional : kW

    0.75

    0.75

    0.75

    0.75

    Column rotating locking method

    By manual

    By manual

    By manual

    By manual

    Boom end max. loading

    300kg

    300kg

    300kg

    300kg

    Trolley traveling speed-Optional:mm/min

    3000

    3000

    3000n

    3000

    Rail inner span(mm)-Optional:mm

    G-G2000

    G-G2000

    G-G2000

    G-G2000


    Option:

    • Welding seam tracker;
    • Welding oscillator;
    • Flux recovery & convery machine;
    • Lincoln welding power;
    • China welding power;

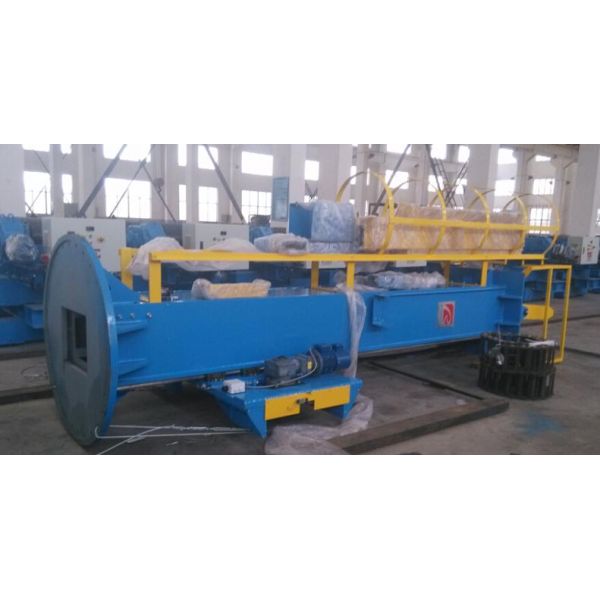

    Delivery picture:


    Product name:
    column boom welding manipulator, CaB, welding manipulator, welding column boom,automatic welding machine, automatic welding center, cross beam manipulator, welding column;
